Dell PowerEdge R760XD2 2U Rack Server Dual Socket High Performance Computer Server with Faster Storage for Global B2B Procurement

Product Parameters

Server Model	Dell EMC PowerEdge R760XD2
Features	Technical Specifications
Processor	Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist Technology
RAM	Up to 16 DDR5 RDIMMs (up to 1TB supported) NVDIMM No DIMM Speed: up to 4800 MT/S
Storage controllers	• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software RAID: S160
Drive Bays	Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Power supplies	• 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W LVDC -48 — -60 VDC, hot swap redundant • 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
Size	• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 772.13 mm (30.39 inches) with bezel, 758.29 mm (29.85 inches) without bezel
Fans	• Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans • Up to 6 hot plug fans
Outline specification	2U rack server
Embedded management	iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module
Embedded NIC	2 x 1 GbE LOM
GPU options	Up to 2 x 350 W DW and 6 x 75 W SW
Port	Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA Rear Ports • 1 x Dedicated iDRAC Ethernet port • 1 x USB 2.0 • 1 x USB 3.0 • 1 x VGA • 1 x Serial (optional) • 1 x VGA (optional for Direct Liquid Cooling configuration)
PCIe	Up to eight PCIe slots: • Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length • Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length • Slot 3: 1 x16 Gen4 Low profile, Half length • Slot 4: 1 x8 Gen4 Full height, Half length • Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length • Slot 6: 1 x16 Gen4 Low profile, Half length • Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length • Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length • Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length
Operating system and hypervisor	Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi For specifications and interoperability details, see official operating system support documentation.
Warranty	3 years

Products Description

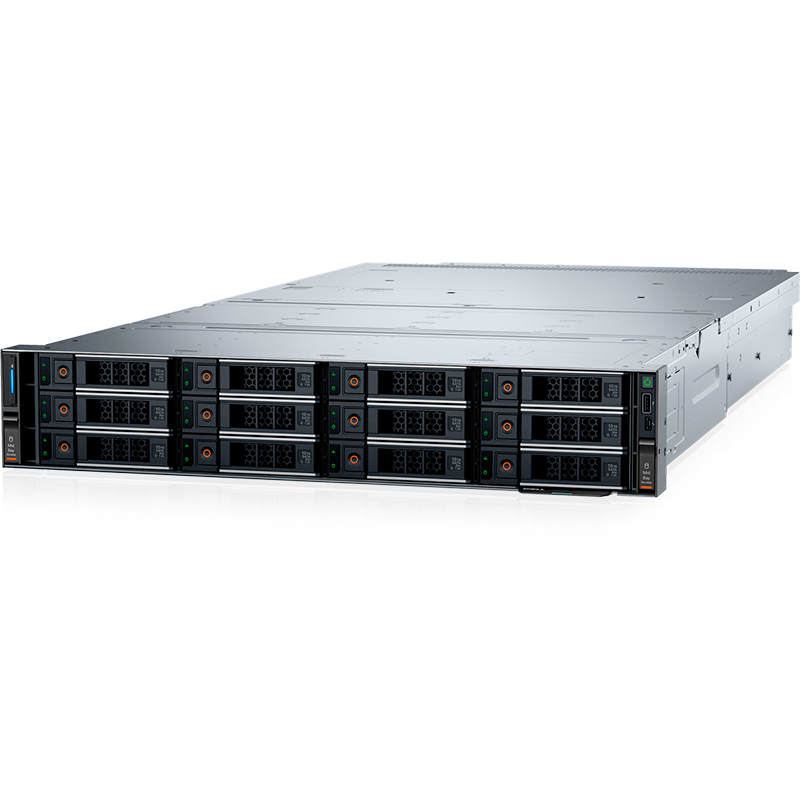

Dell PowerEdge R760xd2

Meet your growing unstructured data needs with object storage technology designed to be easily configurable, serviceable, and scalable. This 2U, 2 socket server is ideal for file and object storage, video capture/retrieval, and content delivery networks.

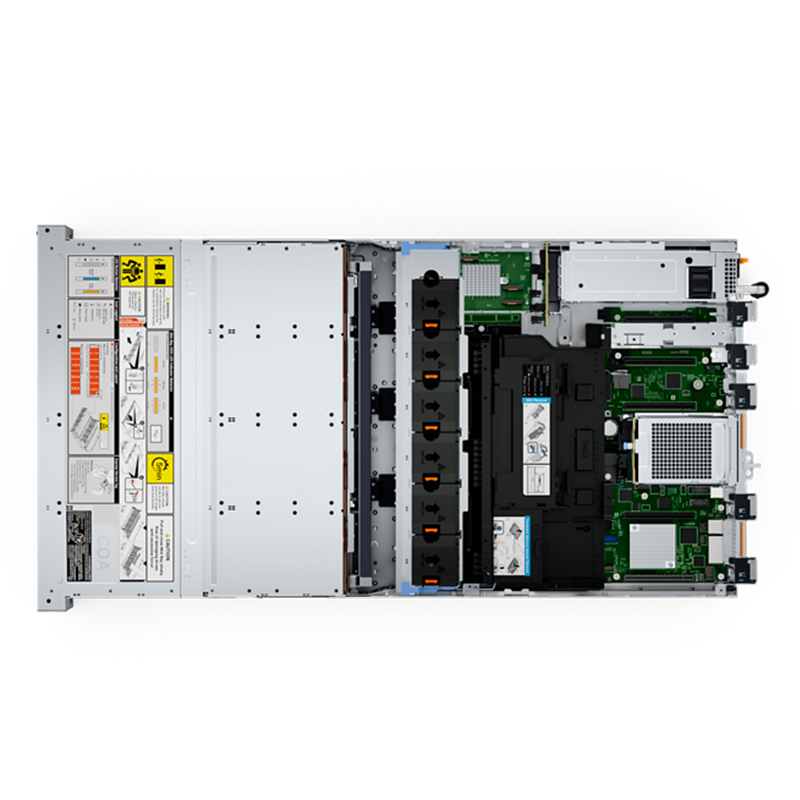

Product Display

Application Scenario

Company Profile

As a leading integrated IT solutions provider, we combine cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation.

As authorized partners for Huawei, xFusion, Dell, HPE, and Lenovo, we provide:

Computing servers
Network storage
Network switches
CPU, RAM, HARD DRIVES, and other accessories

Exhibition

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Frequently Asked Questions

Q1: When can I get the quotation?

We usually quote within 24 hours after receiving your inquiry. If you require urgent pricing feedback, please let us know immediately so we can prioritize your request.

Q2: What guarantees do you offer for your equipment?

We prioritize high-quality performance. All complete systems and whole-machine configurations include a comprehensive 3-year replacement warranty, supported by our reliable engineering supply chain to quickly address any post-sales maintenance needs.

Q3: Are the memory and internal components original?

Yes, all memory modules are built with original brand chips. We conduct rigorous quality-control checks and performance testing on all memory and hardware configurations before they are packaged for delivery.

Q4: What payment terms and security measures are accepted?

To guarantee transactional safety, we support a variety of verified payment channels, including standard bank transfers, credit cards, secure digital payment integrations, and T/T options.

Q5: What is the minimum order quantity (MOQ)?

Minimum order quantities vary depending on the product lines and configurations requested. Please reach out with your exact specifications, and we will work to accommodate your project scale, including small orders or pilot runs.

Q6: How do you address difference in pricing versus other local offers?

Our long-term manufacturing specialization prioritizes high-grade components, internal structural safety, and testing standards. While items may look identical outwardly, pricing variations reflect differences in component longevity, performance levels, and certified technical support.
